Our Fleetlist
NameDutch Blue
Port of RegistryRotterdam
Flagthe Netherlands
Vessel TypeAnchor Handling Towing Tug
Year of Build2012
ClassABS + A1(E) “Towing & Offshore Support Vessel” + AMS
Bollard Pull50
OwnerRederij Holland Offshore b.v.

MAIN DIMENSIONS

Length o.a.52.80m
Beam o.a.13,20m
Depth5,20m
Draft4,50m max.
Gross Tonnage1159
Deadweight935

TANK CAPACITY

Fuel550m3
Fresh water360m3
Lubrication Oil6,21m3
Dirty Oil16,97m3
Bilge16,97m3
Dispersant4.42m3

PERFORMANCES

Bollard Pull50
Speed11,5 Knots

PROPULSION SYSTEM

Main Engine2x 1600 kW @ 1000 rpm Wärtsilä 8L20 2x 2146 HP @ 1000 rpm
PropulsionTwin Screw Tug
Power4292 Hp

AUXILIARY EQUIPMENT

Main Generator Sets3x 315 kW Cummins
Capacity1287 Hp
Transfer PumpsYes
Transfer pumps: for fresh water100 m³/hr @ 75m head
Transfer pumps: for fuel oil100 m³/hr @ 75m head

DECK EQUIPMENT

Tow Winch AftHydraulic driven, waterfall type c/w + spooling device towing drum
Tow Wires Aft2x 1000m @ 52mm
Deck Crane5.9 Ton @ 15mPromac
Stern Roller5m length x 1.6m diameter 200SWL
FiFi2 x 600m3 per hour

ACCOMODATION

Berths37 men

NAUTICAL AND COMMUNICATION EQUIPMENT

Radar1 x JRC type JMA-5310-6-MKII 1 x Koden type MDC-2910P
VHF Radio Telephone3 x Sailor type SP3520 Radar
Autopilot1 x Anschütz type NautoPilot NP60
Echo Sounder1 x JRC type JFE-380
GPS1 x Koden type KGP-920D
Compass1 x Anschuetz type standard 22
AIS1 x Furuno type FA-150
Speed Log1 x Benmarin type Anthea speedlog
Magnetic Compass1 x Lilley & Gillie type MK2000S

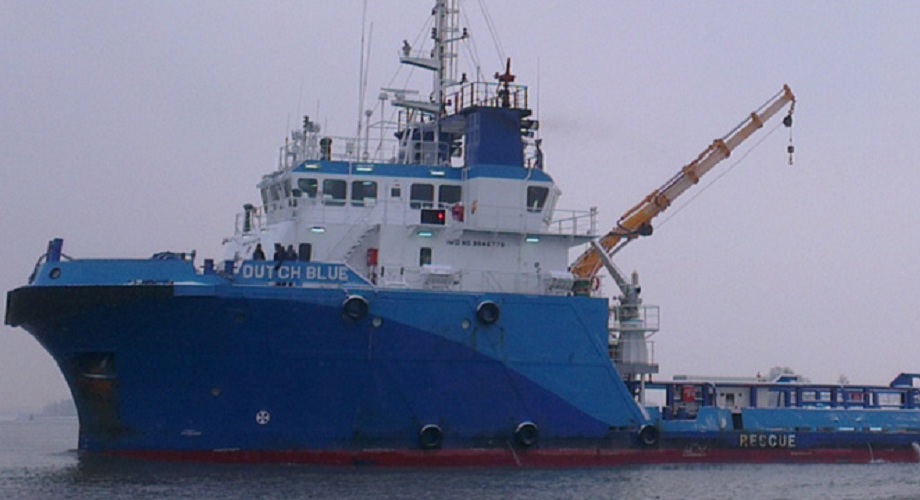

Dutch Blue

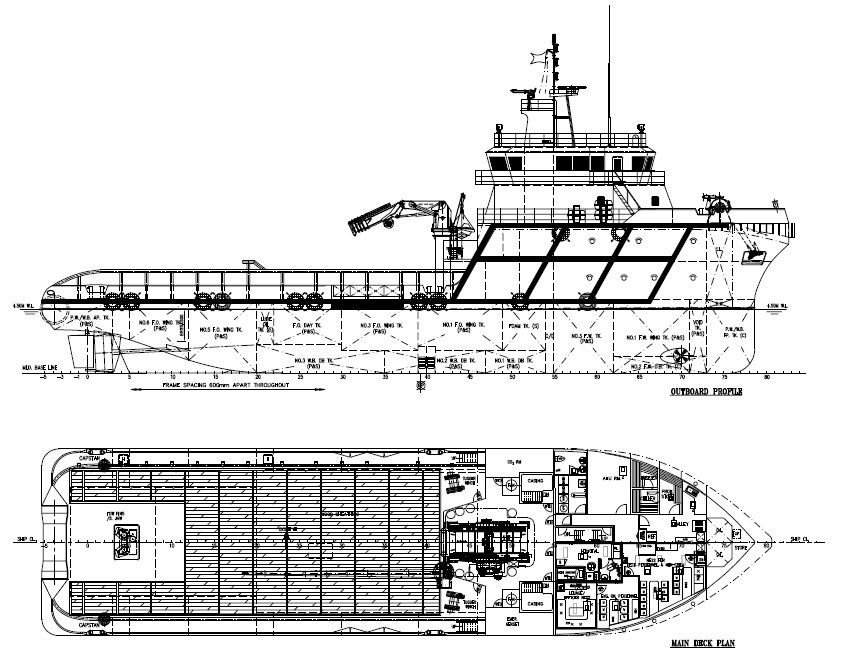

General Arrangement
