Our Fleetlist
Port of RegistryLimassol
Vessel TypeASD
Year of Build2023
ClassBureau Veritas
Bollard Pull60 Tbp
OwnerEMAR Offshore Services b.v.

Propulsion System

Main engines2x Caterpillar 3512C TA HD/D
Total power3804 bkW (5102 bhp) at 1800 rpm
Azimuth thrustersKongsberg Maritime US 205
Propeller diameter2500 mm

Main Dimensions

Length overall28,57 m
Beam overall11.43 m
Depth at sides4.60 m
Draught aft4.75 m
Gross Tonnage300 T
Displacement550 T

Deck Equipment

Anchors2x 360 kg Pool (High Holding Power)
Deck craneHS Marine AK16-3, 845kg @ 11.15mtr
Towing/anchor winch fwdHydraulically driven two speed winch with split drum and warping head, pull 31.5 ton at 9.5 m/min, slack rope speed up to 41 m/min, 150 ton brake
Towing winch aftHydraulically driven, two speed winch with spooling device and warping head, pull 35 ton at 9.2 m/min, slack rope speed up to 27.6 m/min, 150 ton brake
FenderingD-fender at sides, cylinder fender at transom corners, cylinder and W-block bow fender with water spra

Nautical and Communication Equipment

Searchlight(s)Fore 1x Norselight SH470 2000 W
Aft 1x Norselight SH470 2000 W
Radar system(s)FWD 1x Furuno FAR 1518-BB
Electronic chart systemMaxSea, TZ Professional
CompassCassens & Plath Reflecta 11
Satellite compass/GPSSimrad GN70/HS80A
AutopilotSimrad AP-70
EchosounderFuruno FE-800
VHF radio telephones2x Cobham Sailor 7222, one with DSC
VHF radio apparatus1x ATEX proof Sailor SP3540
NavtexFuruno NX-700B
SSBFuruno FS-1575
AISFuruno FA-170
EPIRBJotron Tron-60S

Auxiliary Equipment

Main generator sets2x Caterpillar C4.4 TA, 230/400 V,
107 kVA, 50 Hz
Capacties230/400 V, 107 kVA, 50 Hz
Fuel oil transfer pumpAzcue BR-41-10
Fuel oil purifiers2x Static Purifier CJC PTU3 27/81
1x Dynamic Fuel oil purifier GEA Westfalia OTC-2
Fresh water maker1x Technicomar 3.84 m3/day
DispersantDispersant pumpset with 2 spraybooms
Fifi setMain engine driven pumps
2x 1200 m3/h,
incl. water spray, 400 m3/h
Fifi monitor2x 1200 m3/h water/foam


Fuel oil83.20 m³
Fresh water14.00 m³
Lubrication oil2.33 m³
Dirty oil2.33 m³
Bilge water4.90 m³
Sewage7.40 m³
Foam9.84 m³
Dispersant4.90 m³


Speed13 Knots
Bollard pull astern55.0 Tbp.
Bollard Pull60 Tbp

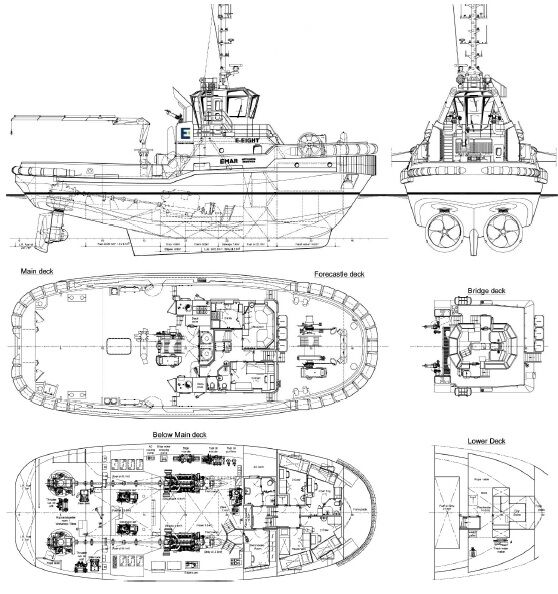

General Arrangement
