Our Fleetlist
NameE-FIVE
Port of RegistryNassau, Bahamas
FlagBahamas
Vessel TypeCrew Supplier
Year of Build2013
ClassBureau Veritas I Hull Mach Sea Area 2
OwnerEMAR Fleet

Main Dimensions

Draught max0.85m
Depth at sides1.85m
Beam o.a.5.40m
Length o.a.16.15m

Capacities

Industrial Personnel29 persons
Crew1 persons
Max. deck load1.0 t/m²
Sewage0.20 m³
Fresh water0.25 m³
Fuel oil2.00 m³

Performance

Range210 Nm. at max. speed
Speed30.0 knots

Propulsion System

PropulsionRolls Royce FF 3755, waterjets
GearboxesTwin Disc HPTO
Total power1000 bkW
Main Engines2 x Caterpillar C18

Accommodation

Air conditioning24,000 BTU
Main deck6 seats for industrial personel and helmmenseat
Below main deck23 seats and toilet

Auxiliary Equipment

General service pumpsElectrically driver, 24V, Azcue CA40
Engine Room Ventilation2x 3,500 m³/hr
Network24 d.c., 230/400V 50Hz. a.c.
Generator sets1x Caterpillar C1.5 NA 11kW/13 kVA

Deck Equipment

FenderingFoam fender, suitable for bow landing
Anchor equipment1x 24kg HHP with chain and line

Communication

S.A.R.T.Yes 1x
Compass1x Magnetic
Echo sounder1x Raymarine
Radar1x Furuno
GPS Map1x Garmin 585 Plus
GPS1x Furuno
Automatic Identification System (AIS)1x Samyung / AIS
VHF with DSC1x Sailor 6210

E-FIVE

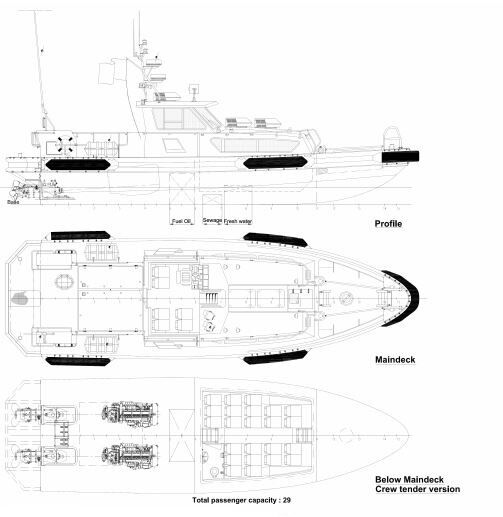

General Arrangement
