Our Fleetlist
Port of RegistryRotterdam, the Netherlands
Vessel TypeASD
Year of Build2016
ClassBureau Veritas
Bollard Pull61 Tbp
OwnerEMAR Offshore Services B.V.

Propulsion System

Main Engine2 x Caterpillar 3516C TA HD/C
Total Power3730 bkW (5000 Hp) at 1600 rpm

Main Dimensions

Length overall28,67 m
Beam overall10,43 m
Depth at sides4,60 m
Draught aft4,72 m
Displacement531 T
Gross tonage294 T

Deck Equipment

Tow Winch ForwardDouble Drum, 35 T, 28m/min
Tow Wires Fwd2 x 90m Corona Line Winchline PET3 80mm
Towing Hook AftMampaey 65 T
Deck CraneHeila HLM 20-3S 1.7T @ 10.56m
Winch Capacity Deck Crane2.1 T
Push BowRubber Bow Fender and Cylindrical Bow Fender
FiFi Set2500 m³/hr
FiFi monitor2x 1200 m³/h, water/foam, 10 bar

Nautical and Communication Equipment

GMDSSFuruno FS-1575
RadarFuruno FAR 2117
VHF Radio TelephoneS.P. Radio, type Sailor Compact 6222
HandheldJotron Tron TR-20
NavtexFuruno NX-700
Elec. Chart SystemFuruno FMD-3100
AutopilotSimrad AP-70
Echo SounderFuruno LS-6100
GPSFuruno GP-150
Sat compassFuruno SC-50
AISFuruno FA-150
Magnetic CompassCassens & Plath, Type Kotter

Auxiliary Equipment

Main Generator Sets2 x Caterpillar C4.4 TA
Capacity2 x 107 kVA, 50Hz, 230/400 V


Fuel oil72,00 m³
Fresh water14,9 m³
Lubrication Oil9,00 m³
Dirty Oil3,10 m³
Bilge water5,10 m³
Sewage2,20 m³
Foam6,5 m³
Dispersant 4,7 m³


Speed approx.13 knots
Bollard Pull61 Tbp


3x single cabins, 2x double cabins

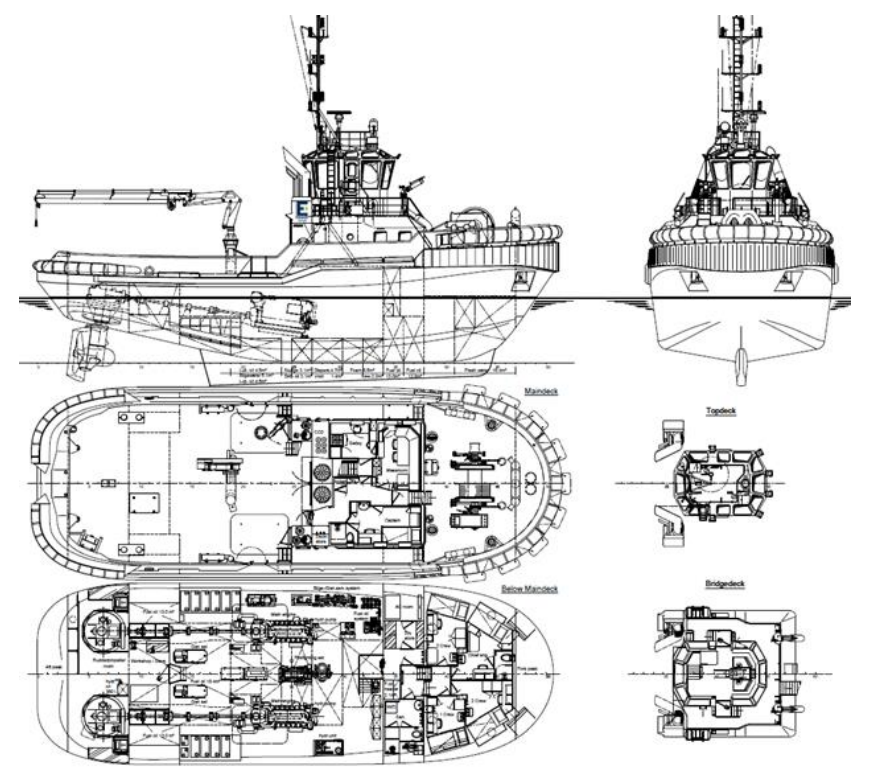

General Arrangement
