| Name | E-TEN |
| Port of Registry | Limassol |
| Flag | Cyprus |
| Vessel Type | ASD |
| Year of Build | Launch scheduled for June 2026 |
| Class | Bureau Veritas |
| Owner | EMAR Offshore Services b.v. |
General
| IMO | TBA |
| Length overall | 27.59 |
| Beam overall | 12.93 m |
| Depth at sides | 5.2 m |
| Draught aft | 4.75 m |
| Gross tonnage | 388 t |
| Displacement | 704 t |
Propulsion System
| Main engines | 2x Caterpillar 3516 TA HD/D |
| Total power | 5050 bkW (6772 bhp) at 1800 rpm |
| Azimuth thrusters | 2x Kongsberg Maritime US 255 P30/P35 FP |
| Propeller diameter | 3000 mm |
Deck Equipment
| Anchors | 2x 360 kg Pool (High Holding Power) |
| Deck crane | HS MARINE AK28/10.3 E3 1700 KG at 10.30 M |
| Towing winch fwd | Hydraulically driven double drum, pull 35 ton up to 10 m/min, high speed pull up to 40 m/min, brake 200 ton |
| Anchor winch | 2x Electrically driven, DMC |
| Towing winch aft | DMC hydraulic double drums towing winch. Capacity on each drum 30 t up to 11,4m/min on 2nd layer non-simultaneously. |
| Fendering | D-fender at sides, cylindrical fender at transom corners, cylindrical and W-block bow fender with water spray |
Nautical and Communication Equipment
| Searchlight | 1x Norselight 2000 W + Ø 1x Norselight 2000 W |
| Radar system | 1x Furuno FAR 1518-BB + Ø 1x Furuno FAR 1518-BB |
| Satellite compass / GPS | JRC JLR-21 |
| Electronic Chart System | MaxSea TZ Professional |
| Compass | Cassens & Plath Reflecta 11 |
| Autopilot | Simrad AP-70 |
| Echosounder | Furono FE-800 |
| VHF Radio telephone | 2x Cobham Sailor 7222 (one with DSC) + Ø 1x Cobham Sailor 6215 |
| VHF hand-held | 2x Sailor SP3540 |
| Navtex | Furuno NX-900 |
| AIS | Furono FA-170 |
| SSB | Cobham Sailor 6310 |
| EPIRB | Jotron TRON 60AIS |
| Sart | Jotron TRON AIS |
Auxiliary Equipment
| Generator sets | 2x Caterpillar C4.4 TA, 400 V, 107 kVA, 50 Hz or Ø 440 V, 123 kVA, 60 Hz |
| General service pumps | 2x Azcue CA 50/3 27 m3/h up to 3.4 bar |
| Hydraulic system | Main engine driven pumps |
| Fifi set | Main engine driven pump 1200, 2400 m3/h or Ø with water spray |
| Fifi monitor | 2x 1200 m3/h, water/foam |
Capacities
| Fuel oil | 89 m3 |
| Fresh water | 2 x 8.4 m3 |
| Lubrication oil | 2.40 m3 |
| Dirty oil | 2.40 m3 |
| Bilge | 5.60 m3 |
| Foam | 9.40 m3 |
Performance
| Bollard pull ahead | 82.7 t |
| Bollard pull astern | 76.1 t |
| Speed ahead | 12.7 kn |
Accommodation
| General accomdation | For max. 10 persons (MLC 2006 compliant), insulated and finished with durable modern linings, acoustical ceiling in the wheelhouse, floating floors and air-conditioned. |
| Cabins & communal spaces | Captain’s cabin, chief engineer’s cabin, 4 double crew cabins, galley, mess/dayroom, dry store, ships office and sanitary facilities. |

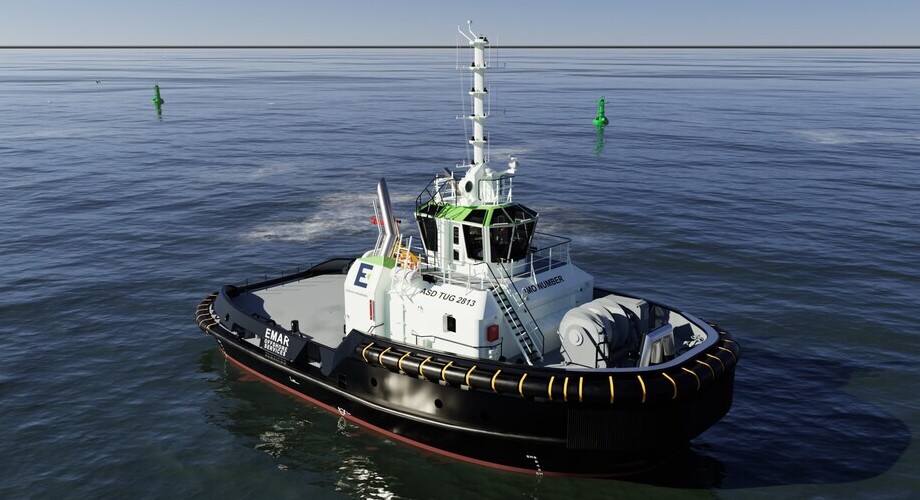

E-TEN

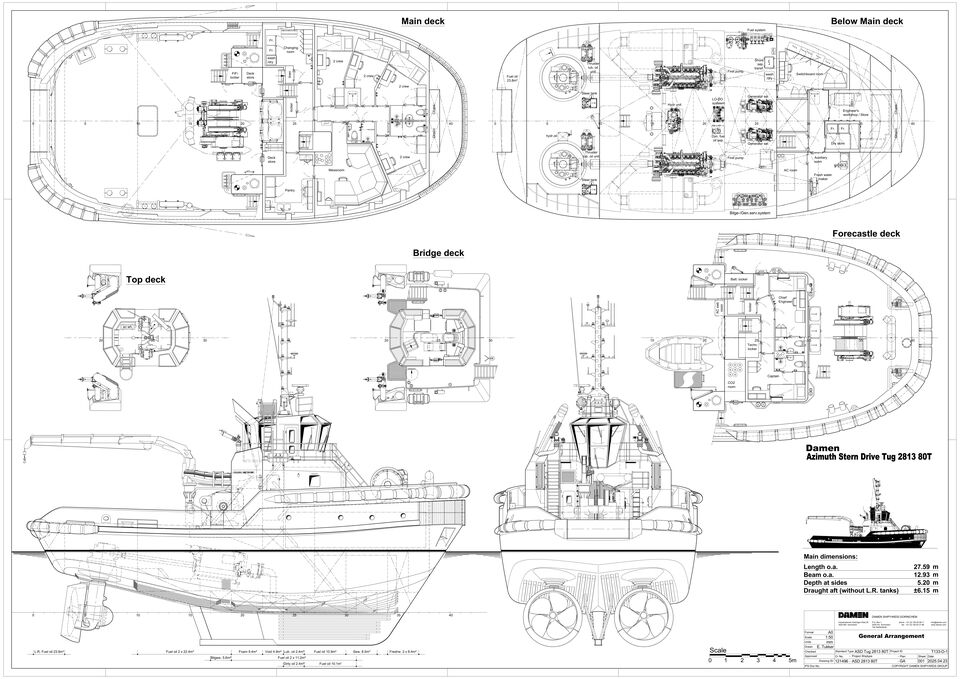

General Arrangement
