| Name | ELAYNE |
| Port of Registry | Kingstown |
| Flag | Sint Vincent and the Grenadines |
| Vessel Type | Fast Support Intervention Vessel |
| Year of Build | 2019 |
| Class | Bureau Veritas |
| Owner | Operator: Emar Offshore Services B.V. |
General
| IMO | 9698886 |
| Lenght overall | 53.20 m |
| Beam overall | 10.10 m |
| Depth at sides | 4.70 m |
| Draught Max | 3.50 m |
| Gross tonnage | 454 T |
Propulsion System
| Main Engines | 4x Caterpillar 3512C TA |
| Total Power | 4472 bkW (6000 bhp) |
| Gearboxes | 4x ZWVS 730/1 |
| Propulsion | 4x fixed pitch propellor |
| Bow Thruster | 2x 75 kW, electrically driven |
Deck Equipment
| Anchor Equipment | 1x 184 kg VHHP with steel calble |
| Aft Deck | Wood covering of the aft deck |
| Fast Rescue David | Palfinger PRHE 35 |
| Fast Rescue Craft | Palfinger FRSQ 700 |
Ship Systems
| General Service Pump | 2x Electrically driven |
| Bilge Water Seperator | 1x 0.5 m3/hr |
| Fuel Seperator | 1x non-self-cleaning, 1x self cleaning |
| Engine Room Ventilation | 72.000 m3/hr |
| Sewage treatment plant | 1x |
| Cargo Pump (F.W. + Feul) | 70 m3/hr at 6.3 bar |
| Oil Spill Equipment | Dispersant pumps and booms |
Nautical and Communication Equipment
| Searchlight | 2x 1000W MP Pesch |
| Radars | 2x JRC JMA 5212-4 MK2 |
| DGPS | 1x JRC JLR 7800, 2x CNAV 3050 |
| Echo sounder | 1x Alphatron Alphadepth |
| Night Vision Camera | 1x Flir Voyager II |
| Navtex | 1x JRC NCR-333 |
| AIS | 1x JRC JHS 183 |
| CCTV | 4x Camera, monitor in wheelhouse |
| Radio Communication | GMDSS A3 |
| Satellite Communication | Fleet broadband 250 |
| Autopilot | Alphatron Seapilot MFC |
| Gyro Compass | 2x Alphatron Alphaminicourse |
| Dynamic Positioning DP1 | Alphatron / Navis (Dynapos AM) |
Auxiliary Equipment
| Fire Fighting Internal | Fixed fire fighting in engine room (Novec 1230) |
| Firefighting external | 2x remote operated FiFi monitor, 1200 m3/hr |
| Life Bouys | 8 |
| Life Jackets | 79 |
| Life Rafts | 5x, with a combined capacity of at least 79 persons |
Capacities
| Fuel Oil | 169.80 m3 |
| Fresh Water | 28.60 m3 |
| Economic speed | 10.0 kn / 180 l/hr |
| Fresh Water Cargo | 132.6 m3 |
| Bilge Water | 1.5 m3 |
| Sewage | 1.0m3 |
| Foam | 30.80 m3 |
| Dispersant | 9.50 m3 |
| Cargo Deck Area | 250 m2 |
| Aft deck cargo max. | 250 t |
| Deadweight max. | 325 t |
| Crew | 14 persons |
| (industrial) personel | 65 persons seated |
Electrical Equipment
| Network | 24V d.c. 240V/415V 60 Hz a.c. |
| Generator Sets | 3x 99.0 ekW-123.0 kVA |
| Reefer Sockets | 4x, 32A |
Performance
| Speed | 23,5 kn |
Accommodation
| Below Main Deck | Crew Cabins upto 12 persons, pantry and mess room, store and sanitary spaces |
| Main Deck | Crew cabin for 4 persons, industrial personnel area and sanitary spaces |
| Air-Conditioning | Air conditioning in wheelhouse and accomodation |
ELAYNE

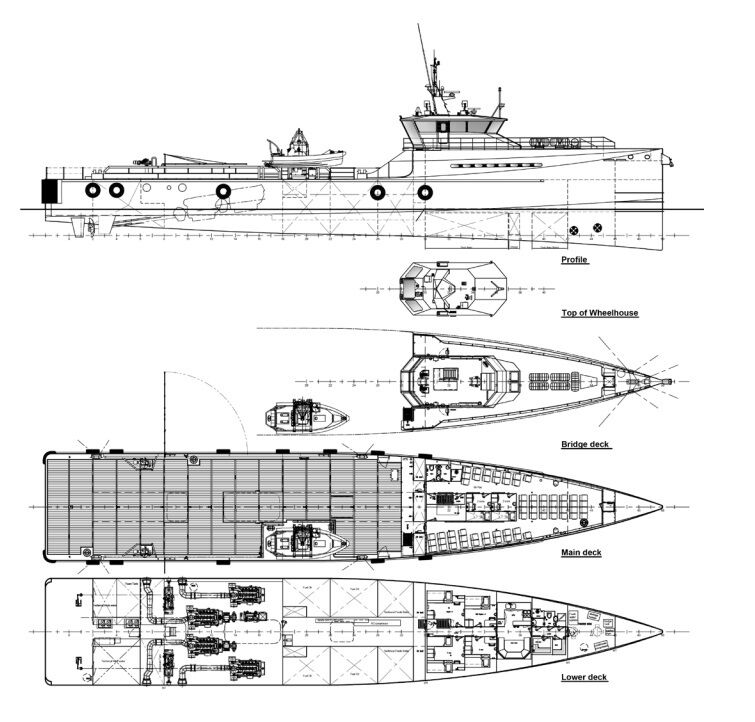

General Arrangement
