Our Fleetlist
NameJaro II
Port of RegistryWillemstad, Curacao
FlagDutch Antilles
Vessel TypeTwin Screw Tug
Year of Build1990
ClassLloyds Register - Unrestricted
Bollard Pull63 Tbp.
OwnerEMAR Offshore Services B.V.

MAIN DIMENSIONS

Length o.a.29.60 m
Beam o.a.9.25 m
Depth4.75 m
Draft4.60 m
Gross Tonnage308 T
Deadweight92 T
Displacement360 T

TANK CAPACITY

Fuel189.000 Ltr.
Fresh water23.500 Ltr.
Lubrication Oil3.660 Ltr.
Dirty Oil2.970 Ltr.
Sewage6.500 Ltr.
Sludge3.530 Ltr.
Dispersant3.100 Ltr.

PERFORMANCES

Bollard Pull63 Tbp.
Speed12.3 Knots

PROPULSION SYSTEM

Main Engine2 x Caterpillar 3606
PropulsionTwin Screw TA/CRS
Power3340bkW / 4500 Hp

AUXILIARY EQUIPMENT

Main Generator Sets2 x Caterpillar 3304 DI-TA
Fuel Oil Separator1 x 2m3/hr
Air Compressor2 pcs. Atlas LT7-30SB and Quincy 325 QR - 25 serie

DECK EQUIPMENT

Tow Winch ForwardSingle Drum, 50T
Tow Winch AftRidderinkhof, TW-H0180, 107T
Tow Wires AftDrum Part I: 700m, Ø48mm
Drum Part 2: 180m, Ø48mm
Towing Hook AftMampaey 65 T
Deck CraneHeila HLM 25-2S, 500 kgs. at 5 m
FiFiYes

ACCOMODATION

Berths8
2 x single cabins, 3x double cabins

NAUTICAL AND COMMUNICATION EQUIPMENT

GMDSS2 x Jotron TR-20
RadarFuruno 1945
VHF Radio Telephone2x Sailor DSC RT5022 / 2x VHF RT2048
Handheld3x Standard Horizon Floating HX850S
NavtexFuruno Navtex NX-706
Elec. Chart SystemFuruno FMD-3100
AutopilotPilotstar D Anschutz
Inmarsat CTerminal 1 Sailor TT-3606E
Terminal 2 Sea 6606
Echo SounderFuruno LS-6100
GPSFuruno GPS/Waas Navigator GP-32
Sat compassFuruno SC-502
AISFuruno GFA-1702
Magnetic CompassFreefloating Rose

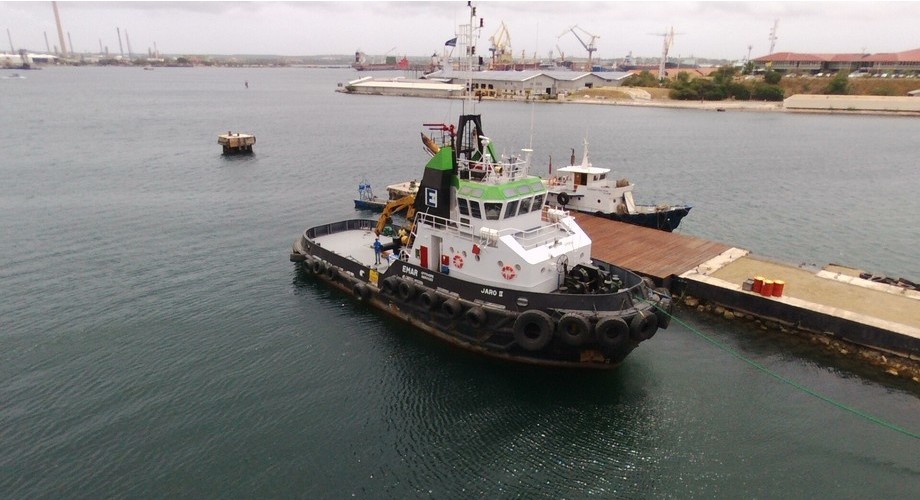

Jaro II

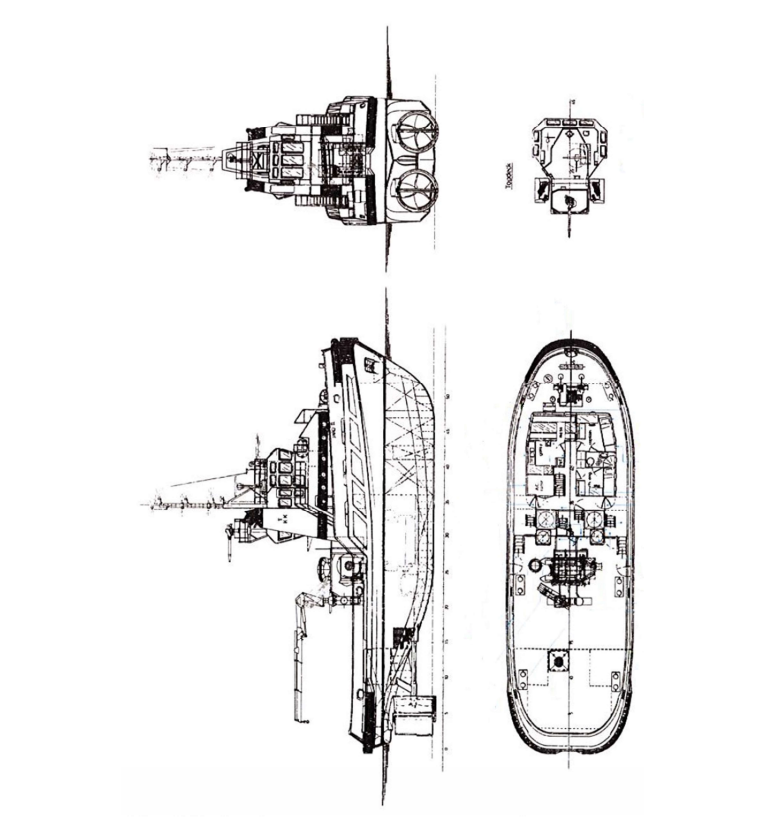

General Arrangement
