Our Fleetlist
Port of RegistryNassau, Bahamas
Vessel TypeTwin Screw Tug
Year of Build1986
ClassBureau Veritas
Bollard Pull30 Tbp
OwnerEMAR Offshore Services b.v., as Managers of Black Star Shipping

Main Dimensions

Length overall28,60 m
Beam overall8,74 m
Depth at sides4,20 m
Draught aft3,78 m
Displacement614 T
Gross tonnage236 T


Fuel oil127,5 m³
Fresh water22 m³
Lubrication Oil4,2 m³
Hydraulic oil1,4 m³
Dirty oil3,6 m³
Ballast16 m³
Sewage2,80 m³
Foam7 m³


Speed13 Knots
Bollard Pull30 Tbp

Propulsion System

Main Engine2 x SWD, type 6FH240
Total Power1780 bkW (2400 Hp)


Accomodation6 persons, consisting of four single crew cabins and one double crew cabin

Auxiliary Equipment

Main Generator Sets2 x Caterpillar C4.4
Fuel oil seperator3 m³/hr

Deck Equipment

Tow Winch AftSingle Drum, 100T
Tow Wires Aft1 x 700m, Ø44mm
Towing Hook AftYes

Nautical and Communication Equipment

Magnetic compassAlphacourse
RadarFuruno FAR 2117
GPSFuruno GP-150
AISFuruno FA-150
VHF Radio telephone2x Sailor DSC RT5022 / 2x VHF 6210

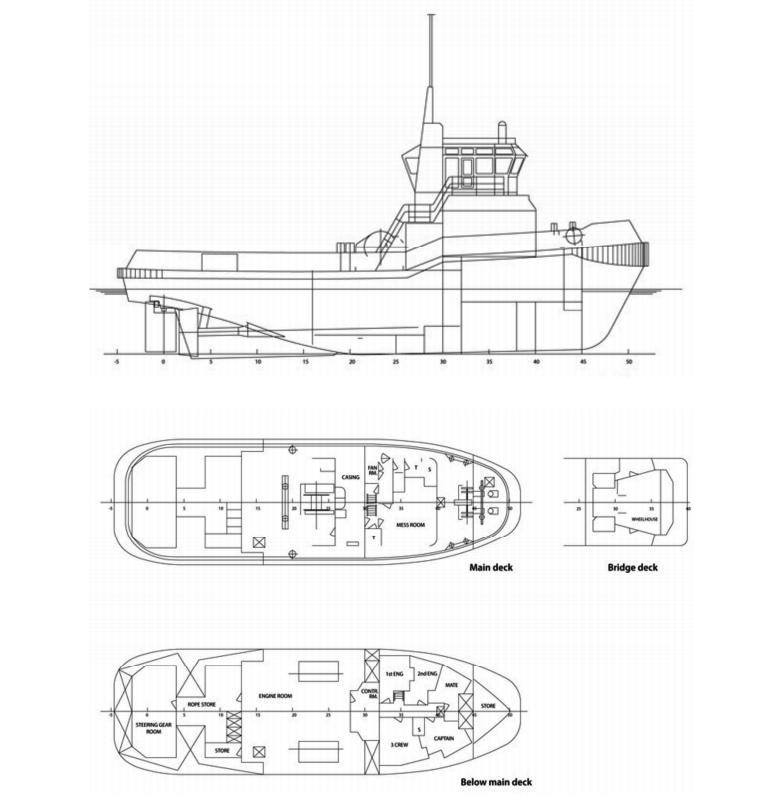

General Arrangement
